Your current location: ProductsHydraulic Control ValveEmergency Shut Off Valve

900X Emergency Shut Off Valve

Product overview

Product model: 900X
Nominal diameter: DN40~1600mm
Nominal pressure: PN1.0~2.5MPa
Applicable medium: water, oil, sea water, sewage
Applicable temperature: 0~80℃
Structure length standard: GB/T12221-2005
Standard of connection flange: GB/T9113
Pressure and temperature grade: GB/T12224-2005
Test inspection standard: GB/T13927-2008

900X Emergency Shut Off Valve product details

Hydraulic control valve is a hydraulic control valve, hydraulic control valve is a main valve and attached to the catheter, pilot valve, needle valve, ball valve, pressure reducing valve, slow closing check valve, flow control valve, pressure relief valve, Hydraulic electric control valve, pump control valve. Before the hydraulic control valve to be installed filters, and should facilitate the sewage requirements.

900X emergency shut-off valve is used for fire water and domestic water in parallel with the water supply system, used to deploy the water supply direction of the valve. When the fire broke out, the fire was in urgent need of a lot of water, immediately cut off the domestic water, to ensure adequate fire water; when the fire water pressure to stop reducing, the valve automatically opens, was normally open to resume living water supply. The valve so that the system does not require a separate fire special water supply pipe network, greatly reducing construction costs and water consumption. Valve control of high sensitivity, safe, reliable, easy commissioning, long service life.

900X Emergency Shut Off Valve structural features and uses

Emergency shut-off valve for domestic water supply and fire water supply Parallel water supply system, the normal situation for domestic water, fire water when the fire occurs, the valve automatically turn off domestic water to ensure adequate fire fighting water. When the fire stopped reducing the pressure of water, the valve automatically restore domestic water, the valve eliminates the need for separate fire special water supply pipe network, which greatly saves construction costs and daily water consumption. The valve control sensitive, safe, reliable, simple commissioning, long service life.

900X Emergency Shut Off Valve main technical parameters

Nominal pressure (Mpa)	Shell test pressure (MPa)	Seal test pressure (MPa)	Suitable media	Medium temperature (℃)
1.0	1.5	1.1	water	0-80
1.6	2.4	1.76
2.5	3.75	2.75

900X Emergency Shut Off Valve main parts material

Part Name	Parts and materials
Body valve cover	WCB
Valve seat disc	Copper alloy
O-ring seals	Nitrile rubber
Valve stem	2Cr13
spring	50CrVA
Needle valve	Copper alloy
Ball valve	Copper alloy
Float valve	Copper alloy
Micro filter	stainless steel

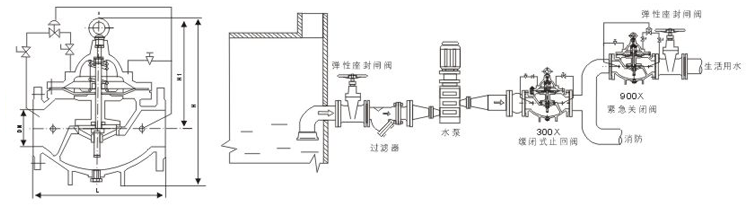

900X Emergency Shut Off Valve connection size

DN	L	A	A1	H	H1	F	D mm			D1 mm			D2 mm			n-Φd
DN	mm	mm	mm	mm	mm	mm	PN1.0	PN1.6	PN2.5	PN1.0	PN1.6	PN2.5	PN1.0	PN1.6	PN2.5	PN1.0	PN1.6	PN2.5
20	180	292	136	342	247	116	105	105	105	75	75	75	58	58	56	4-13.5	4-13.5	4-14
25	201	292	136	342	247	116	115	115	115	85	85	85	68	68	65	4-13.5	4-13.5	4-14
32	180	292	136	342	247	116	140	140	140	100	100	100	78	78	76	4-17.5	4-17.5	4-18
40	205	330	155	395	278	170	150	150	150	110	110	112	88	88	84	4-17.5	4-17.5	4-18
50	205	330	155	395	278	170	165	165	165	125	125	125	102	102	99	4-17.5	4-17.5	4-18
65	250	350	165	405	298	180	185	185	185	145	145	145	122	122	118	4-17.5	4-17.5	8-18
80	250	365	175	430	313	210	200	200	200	160	160	160	133	133	132	8-17.5	8-17.5	8-18
100	320	410	195	510	350	275	220	220	235	180	180	190	158	158	156	8-17.5	8-17.5	8-22
125	415	455	220	560	365	310	250	250	270	210	210	220	184	184	184	8-17.5	8-17.5	8-26
150	415	475	230	585	420	355	285	285	300	240	240	250	212	212	211	8-22	8-22	8-26
200	500	530	255	675	450	460	340	340	360	295	295	310	268	268	274	8-22	12-22	12-26
250	605	623	300	730	470	500	395	405	425	350	355	370	320	320	330	12-22	12-26	12-30
300	725	700	340	760	490	580	445	460	485	400	410	430	370	370	389	12-22	12-26	16-30
350	787	840	415	840	526	640	505	520	555	460	470	490	430	430	448	16-22	16-26	16-33
400	787	880	430	910	570	715	565	580	620	515	525	550	482	482	503	16-26	16-30	16-36
450	864	930	460	1030	610	780	615	640	670	565	585	600	532	550	548	20-26	20-30	20-36
500	914	980	490	1135	665	830	670	715	730	620	650	660	585	585	609	20-26	20-33	20-36
600	1067	1060	530	1270	725	920	780	840	845	725	770	770	685	685	720	20-30	20-36	20-39
700	1650	1130	560	1460	865	980	895	910	960	840	840	875	800	800	820	24-30	24-36	24-42
800	1750	1230	610	1640	975	1050	1015	1025	1085	950	950	990	905	905	928	24-33	24-39	24-48

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the 900X Emergency Shut Off Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
