Q61F Welded Steel Ball Valve
Product overview
Product Model: Q61F
Nominal diameter: DN15~250mm
Nominal Pressure: PN1.6~6.4Mpa, Class150~600LB
Main materials: WCB, A105, F11, F22, F304, F316, CF8, CF8M, WCC or according to customer requirements.
Applicable temperature: -40 ~220 ~
Connection: welding, butt welding
Drive mode: electric, manual, worm wheel drive, gear drive, etc.
Design and Manufacturing Standard: GB/T 12237-2007
Standard for Structural Length: GB/T 12221-2005
Socket welding standard: GB12224, ANSIB16.25
Pressure and temperature rating: GB/T 12224-2005
Test Inspection Standard: GB/T 13927-2008
Q61F Welded Steel Ball Valve Product uses:
1) Urban gas: gas output pipeline, main line and supply pipeline of each branch line, etc.
2) Central heating: output pipelines, main lines and branches of large heating equipment.
3) Heat exchanger: opening and closing of pipelines and loops.
4) Steel plant: all kinds of fluid pipeline, exhaust gas discharge pipeline, gas and heat supply pipeline, fuel supply pipeline.
5) all kinds of industrial equipment: all kinds of heat treatment pipelines, all kinds of industrial gas and heat pipelines.

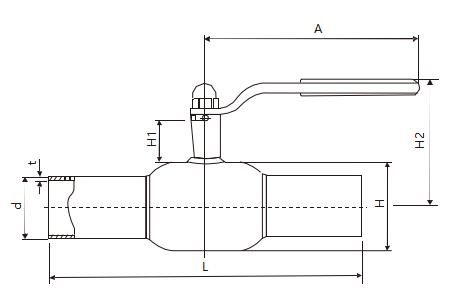

Q61F Welded Steel Ball Valve main connection dimensions:
|
DN |
Bore |
DH |
d |
t |
L |
H1 |
H2 |
A |
kg |
|
A/B |
|||||||||
|
50 |
40 |
89 |
60.3/57 |
4 |
300 |
35 |
135 |
180 |
4 |
|
65 |
50 |
108 |
76.1/76 |
4 |
300 |
35 |
144 |
275 |
5.2 |
|
80 |
65 |
133 |
88.9/89 |
5 |
300 |
44 |
154 |
275 |
6.3 |
|
100 |
80 |
159 |
114.6/108 |
5 |
325 |
50 |
193 |
365 |
11 |
|
125 |
100 |
193 |
139.7/133 |
5 |
325 |
42 |
218 |
365 |
16 |
|
150 |
125 |
219 |
168.3/159 |
6 |
350 |
83 |
343 |
650 |
24 |
|
200 |
150 |
273 |
219/219 |
7 |
400 |
84 |
345 |
800 |
39 |
